Simulation & Training
Design Draft Pro specializes in developing personalized Custom-made Operator Training Simulators tailored to real Plant Processes. Our expertise encompasses Plant Functional Logic, Cause & Effects, Emergency Shutdown Systems (ESDs), Shutdown Valves (SOVs), Piping & Instrumentation Diagrams (P&IDs), Piping Flow Diagrams, Electrical Switching, and Instrumentation & Control for Pressure, Level, Flow, and Vibration Sensors/Instruments.

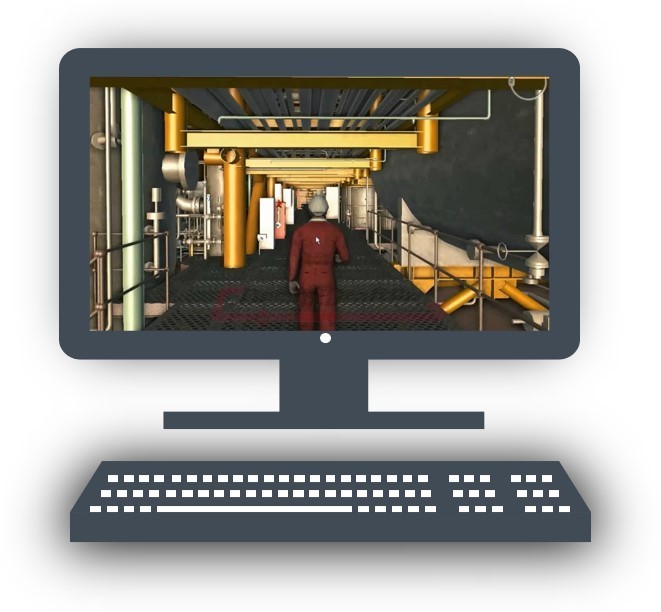

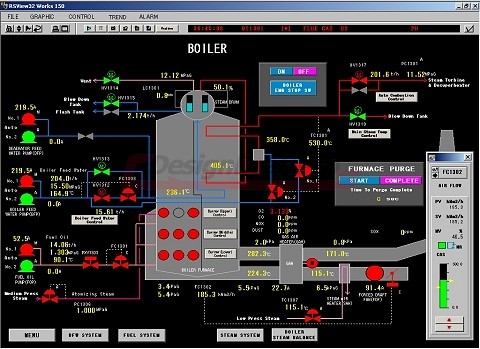

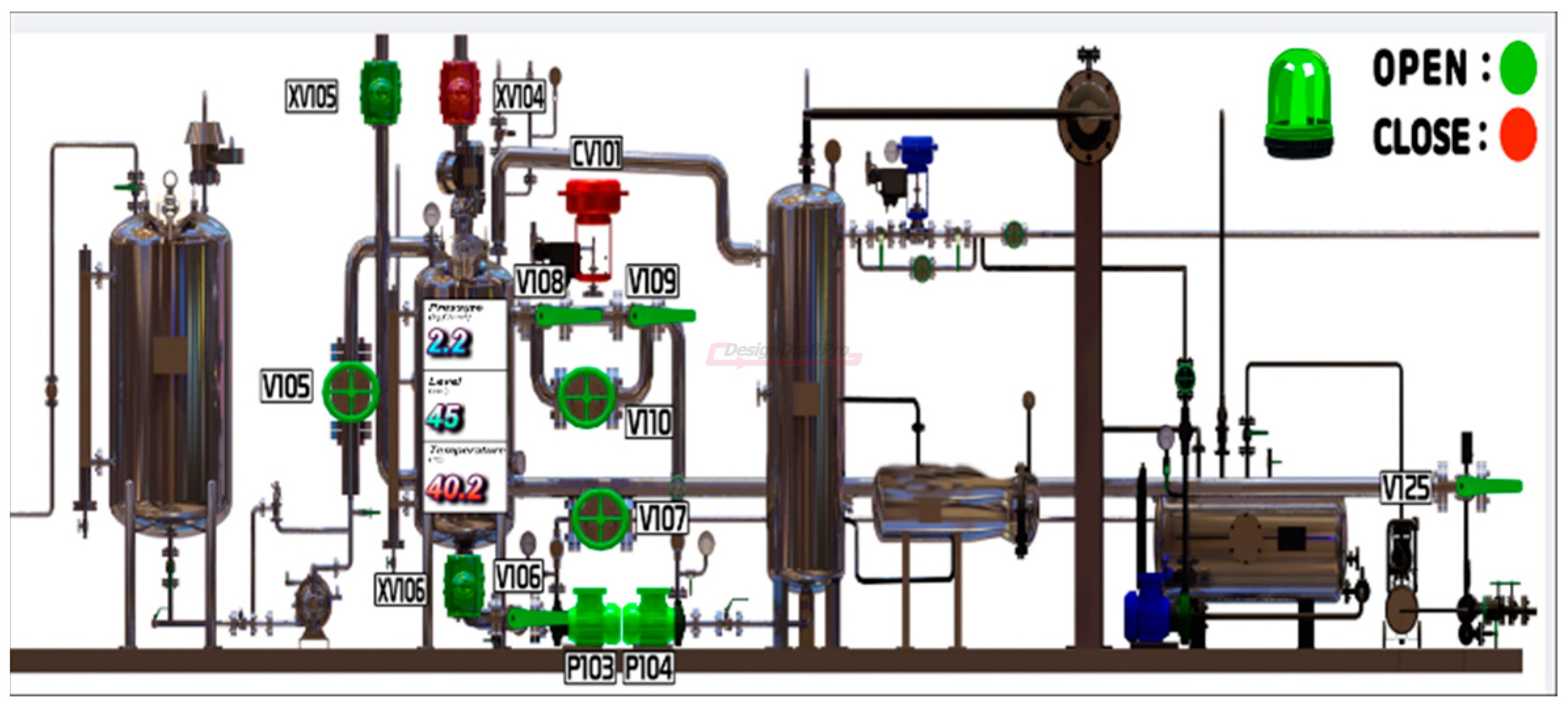

The simulator offers a real-time 2D & 3D model of the plant, complete with on-screen mimic controls. Trainee operators can effectively operate the plant within the simulation environment, ensuring comprehensive training before transitioning to real plant operations.
Common applications of Operator Training Simulator systems are the following:
- New control room operator training (e.g., start-up, shutdown, and emergency procedures)
- Existing control room operator refresher training (e.g., start-up, shutdown, and emergency procedures)
- Platform for advanced process control (APC) and optimization
- Validating DCS control and logic checkout
- Validating and improving plant operating procedures
- “What if?” analysis (scenario analysis)
Get in Touch:
Have a requirement in mind? Send us Inquiry today for a free quote and consultation.
