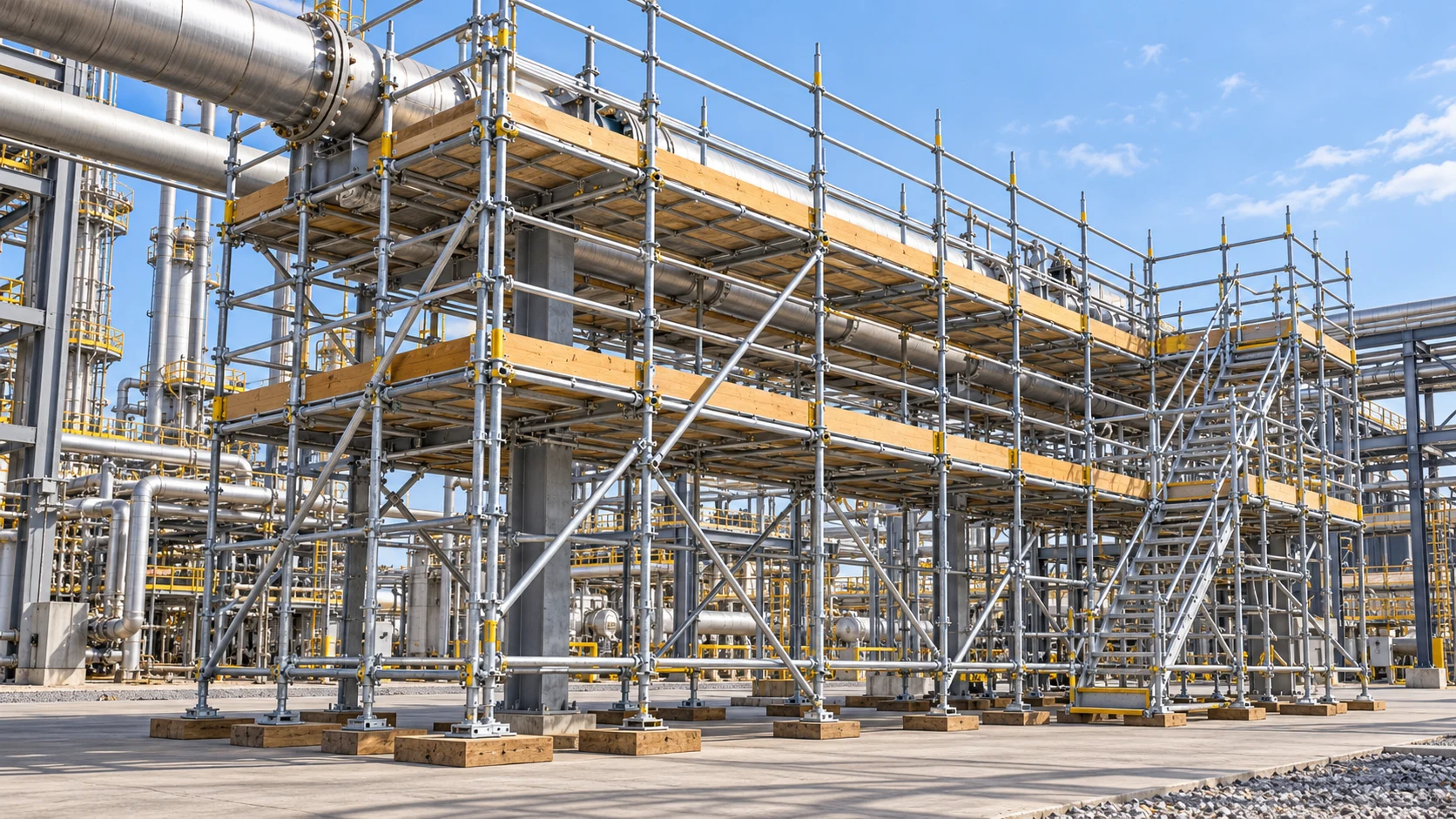

Scaffolding Erection for Overhead Construction Works
Scaffolding used for overhead construction requires a site-specific structural assessment, particularly where suspended platforms, cantilevered arrangements or dynamic loads are involved. The design must address the actual configuration, working loads, ground conditions and environmental exposure before erection begins.
1. Load Capacity Assessment
Determine the dead load of the scaffold and supported equipment, the live load from personnel and materials, and any dynamic or impact effects. Establish the governing load combinations and verify each component against the applicable design requirements and manufacturer’s rated capacity. Safety factors depend on the scaffold type and governing standard; they must not be assumed to be universally 4:1. For example, OSHA 29 CFR 1926.451 specifies a general capacity requirement of self-weight plus at least four times the maximum intended load, with exceptions and different requirements for certain suspension components.
2. Environmental Loads and Lateral Stability
Assess wind exposure, height-to-base proportions, bracing, ties and anchor forces. Confirm resistance to overturning and lateral movement, considering the actual scaffold configuration and any sheeting, netting or other attachments that affect wind loading.
3. Component and Connection Design
Check the capacity of vertical standards and their resistance to buckling. Assess bending and deflection in ledgers, transoms and platforms, together with the shear, slip and load-transfer capacity of couplers, joints and connections. Use verified material properties and compatible components.
4. Foundations and Ground Bearing
Calculate reactions at each support and assess the capacity of the ground or supporting structure. Size base plates, sole boards or bearing pads appropriately, and consider settlement, uneven support and any additional loads imposed on existing structures.
5. Material Quantities and Erection Planning
Prepare a component schedule covering standards, ledgers, transoms, braces, ties, platforms, guardrails, toe boards, access arrangements and foundations. Coordinate quantities with the approved configuration, erection sequence and inspection requirements.
Project-specific design, erection and inspection must be carried out by appropriately qualified or competent personnel under the applicable local requirements, manufacturer’s instructions and approved project procedures. This overview identifies assessment categories; it is not a calculation sheet or an approved erection method.
DesignDraftPro provides design calculations, material schedules and erection requirements for scaffolding used in overhead construction works, supported by 2D and 3D drawings, 3D models and walkthroughs of the complete scaffolding arrangement.
